Membránok - Csontaugmentáció/GBR

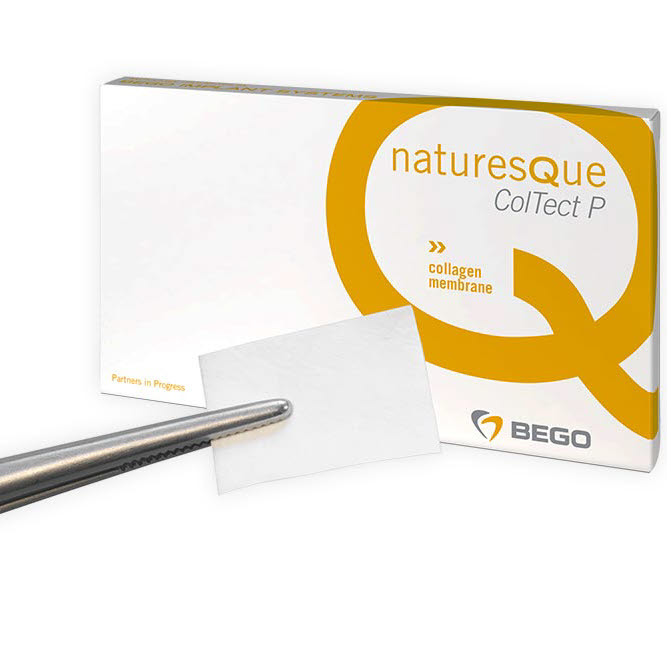

S. NaturesQue ColTect P kollagén membrán / BEGO

BEGO Semados GmbH
NaturesQueKM
Tegye a kosárba
  • Description
  • More Details
  • Specifications

többféle választható méretben

Structure, design, and stability

Scanning electron microscopy image of
naturesQue ColTect P.

naturesQue ColTect P is manufactured from purified collagen-rich tissue. Using a gentle method, the collagen is minimally crosslinked to give the membrane a predictable resorption profile with maximum tissue tolerability. A crosslinked structure prevents premature enzymatic cleavage of the collagen fibers and givesnaturesQue ColTect P a reproducible and reliable barrier function that is adapted to the time profile of bone healing.

This produces a highly versatile and strong membrane with comfortable handling properties.
naturesQue ColTect P is made up of a layer of intact collagen fibers. The membrane is not side specific.

Requirements profile for a collagen membrane

Collagen membranes alone do not have sufficient mechanical stability to shape and protect defect contours. For this reason naturesQue ColTect P is used together with bone substitute materials such as naturesQue SemOss B or naturesQue MaxOss P.

The use of bone substitute materials creates a volumizing framework in the defect space that is used by the osteoblasts as a substrate for bone deposition.

A barrier membrane protects the spaces in the bone defect and prevents the ingrowth of soft tissues. The job of the membrane is to establish and maintain a barrier that is permeable to nutrients between the bone and soft tissue. The membrane also stabilizes the augmentation material by covering the bone defect. The barrier function of naturesQue ColTect P lasts about 3 months, which is sufficiently long to ensure adequate bone healing.

Structure, design, and stability

Scanning electron microscopy image of
naturesQue ColTect P.

naturesQue ColTect P is manufactured from purified collagen-rich tissue. Using a gentle method, the collagen is minimally crosslinked to give the membrane a predictable resorption profile with maximum tissue tolerability. A crosslinked structure prevents premature enzymatic cleavage of the collagen fibers and givesnaturesQue ColTect P a reproducible and reliable barrier function that is adapted to the time profile of bone healing.



This produces a highly versatile and strong membrane with comfortable handling properties.
naturesQue ColTect P is made up of a layer of intact collagen fibers. The membrane is not side specific.


Requirements profile for a collagen membrane

Collagen membranes alone do not have sufficient mechanical stability to shape and protect defect contours. For this reason naturesQue ColTect P is used together with bone substitute materials such as naturesQue SemOss B or naturesQue MaxOss P.

The use of bone substitute materials creates a volumizing framework in the defect space that is used by the osteoblasts as a substrate for bone deposition.

A barrier membrane protects the spaces in the bone defect and prevents the ingrowth of soft tissues. The job of the membrane is to establish and maintain a barrier that is permeable to nutrients between the bone and soft tissue. The membrane also stabilizes the augmentation material by covering the bone defect. The barrier function of naturesQue ColTect P lasts about 3 months, which is sufficiently long to ensure adequate bone healing.

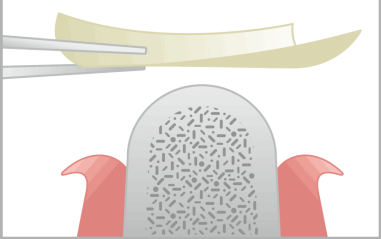

Handling and feel

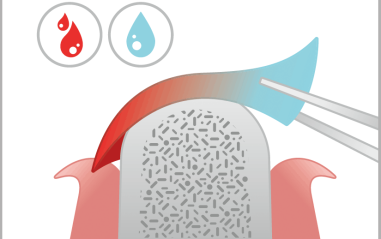

The naturesQue ColTect P membrane can be applied wet or dry. The membrane is cut to size so that the piece overlaps the margin of the defect by about 2 mm. When dry, naturesQue ColTect P is a sturdy, stable membrane. Wetting the membrane with saline or blood makes naturesQue ColTect P flexible, enabling it to be adapted to the defect contours.

It is not usually necessary to fix naturesQue ColTect P because the membrane can be easily wetted and adheres to the bone walls. Nevertheless, naturesQue ColTect P can be repositioned should this be necessary. If needed, naturesQue ColTect P can be sutured or fixed with pins.

naturesQue ColTect P put into context

Origin

  • Porcine peritoneum

Composition

  • Intact collagen fibers
  • Stabilized by reliable minimal crosslinking

Processing

  • Collagen-rich peritoneum
  • Cleaning and removal of non-collagenous proteins
  • Stabilization of the collagen fibers using minimal crosslinking
  • Washing, rinsing, and drying
  • Measurement, packaging, and sterilization
  • Quality Control

Application

  • Remove with sterile instruments
  • Processed wet or dry
  • Adapt to the size of the defect, overlapping by about 2 mm
  • Closed healing is recommended
  • No specific side for positioning
  • Can be repositioned

Consistency/Feel

  • Dry: Stable and rigid, sturdy
  • Wet: Can be draped, sturdy, adhesive, not sticky
  • Does not stretch
  • Tear resistant

Resorption

  • Resorption time between 12 and 16 weeks
Eredete: porcin (disznó) pericardium
Felszívódó: igen,
felszívódási ideje 12-16 hét között (átlagosan 14 hét)

PTFE Membrán Ti 14x24mm Reinforced Anterior

Medipac/Görögország
MEDIPACPDM1424Ti
Tegye a kosárba
  • Description

Ti-PTFE teflon membrán, olyan nem-felszívódó membrán, melynek anyaga Politetrafluor-etilén

 (PTFE) polimer, melynek két rétege közé beágyazott orvosi minőségű titánszalag biztosítja a megformázott alak megtartását.

PTFE Membrán Ti 30x40mm L size Reinforced Posterior

Medipac/Görögország
MEDIPACPDM3040Ti
Tegye a kosárba
  • Description

Ti-PTFE teflon membrán, olyan nem-felszívódó membrán, melynek anyaga Politetrafluor-etilén

 (PTFE) polimer, melynek két rétege közé beágyazott orvosi minőségű titánszalag biztosítja a megformázott alak megtartását.

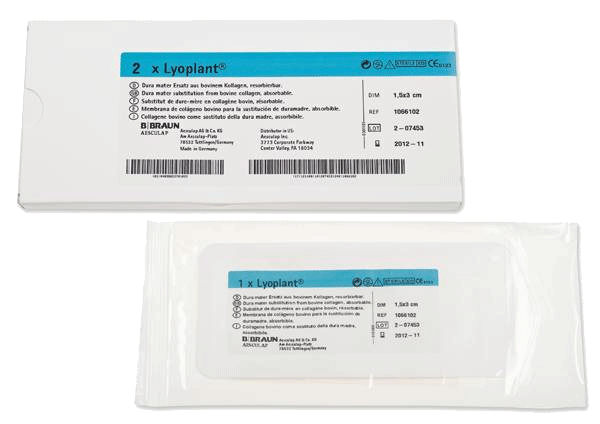

Lyoplant kollagén membrán 2db/doboz /B. Braun

B. Braun
bbr-10661002
Tegye a kosárba
  • Description
  • More Details
  • Specifications
  • 15x30 mm méretben
  • 40x50 mm méretben

2db/dob

közepes felszívódási sebességű kollagén membrán

A Lyoplant borjú pericardiumból nyert tiszta kollagén membrán. A Lyoplant különleges eljárás során tisztítják meg az összes nem-kollagén összetevőktől, enzimektől, zsíroktól, nem kollagén fehérjéktől. Kíméletes fagyasztva szárítás garantálja, hogy a kollagén megtartja fibrotikus struktúráját és az implantálást követően kiváló gyógyulási hajlamát.
Implantálást követően a Lyoplant enzimatikus úton lassan lebontódik, átadva helyét a saját kötőszövetnek.
A Lyoplantnak nem vált ki farmakológiai hatásokat. A membránt alkotó kollagén aminosavakra bomlik le a szervezetben.

Behelyezést követően a Lyoplant felszínén a befogadó szervezet kötőszövetének kolonizációja indul meg. A kolonizáció – a kötőszöveti sejtek szigetszerű megtelepedése a membrán felszínén – néhány nap elteltével indul meg. A membrán teljes felszívódása 1-3 hónapot vesz igénybe.

Ellenjavallt a Lyoplant használata: fertőzött területen, illetve olyan helyen, ahol mechanikai igénybevételnek is ki van téve.

A felhasználás módja
A felhasználási terület nagyságának megfelelő méretű Lyoplant választását követően, a pontosabb méretre szabás ollóval végezhető. Fontos az érintett területre való pontos és feszülés mentes illesztés. Az adaptálhatóság növelésére behelyezés előtt a membrán steril fiziológiás sóoldattal átitatható. Szükség szerint a Lyolpant membrán suturával, vagy fibrinragasztóval rögzíthető a helyén.

Mellékhatás: immunreakció nem zárható ki teljes bizonyossággal.

További tudnivalók:
A Lyoplant nem használható fel a lejárati időn túl!
A Lyoplant tárolási hőmérséklete 25±5 C fok.
A Lyoplant nem újrasterilizálható!
A Lyoplant állati szervből készített implantátum anyag. Az állati eredetű betegségek átvitelének megakadályozására az implantátum alapanyagául szolgáló borjúszervek Új-Zélandról származnak. (Az EU hatóságai Új-Zélandot bovin spongiform enchephalitis-mentes országként tartják nyílván.) Ezenfelül, a feldolgozási eljárás során NaOH-al kezelik az anyagot a fertőzés-átvitel elméleti lehetőségének további csökkentésére.

Eredete: bovin (marha)
Felszívódó: igen
felszívódási ideje 7-14 hét között (átlagosan 9 hét)

S. naturesQue ColAid P kollagén szövet 20x20mm

BEGO Semados GmbH
XY00007
Tegye a kosárba
  • Description
  • Specifications

collagen fleece porcine

S. naturesQue ColAid P kollagén szövet 20x20mm



Eredete: porcin (disznó) pericarium
Felszívódó: igen
